Most EV drivers charge where they sleep or work...
level 2 ev charging for apartments
Level 2 charging is the solution
Level 2 ev charging for the workplace

Level 2 charging solutions are ideal for long stay locations

Studies show about 85% of all EV charging is done at extended stay locations such as where you sleep or work. Level 2 charging solutions are best from a usage, infrastructure, and cost perspective.

Is your Level 2 property listed here?

Level 2 charging is mostly for high dwell time (3+ hrs) locations such as:
Entertainment Venues
Colleges
Hospitals
Apartments and Condos (MUDs)
Hotels
Workplace
Parking Lots & Garages
Small Businesses
Level 2 charging for colleges, apartments, entertainment, hospitals, condos, workplace, hotels, parking garages

How Long Do People Stay at Your Property?

Determine what type of Level 2 charger is needed based on how long the driver stays at your location.

Which Level 2 charger type is right for your property?

Today's vehicles charge at an average rate of 3.5-4 miles per kWh added. Typically, EV drivers do not let the battery drain below 30-60 miles of range, thus a “sweet spot” for a charge is about 150 miles to maintain a “full charge.” The chart below displays the “sweet spot” in blue for each charger type.

EVCC Raspberry Pi Controller
Miles Added Based on Charger Output

Also consider that faster charging tends to yield higher revenue for the charging station host particularly if the rate is based on an amount per kWh. EV drivers will keep the vehicle charging until either the charge is full, or they need to leave, whichever comes first.

Another consideration regarding AC charging is that most EVs today have a maximum AC charge rate of between 32A to 48A. All Tesla brand EVs have 48A or greater on-board AC charging. Higher-end EV’s tend to have higher charging rates. In addition, the charger’s maximum output will depend on single phase (residential) or three phase (commercial) electrical service. Single phase voltage (240v) will provide higher kW output while three phase voltage (208) will reduce the charger’s capacity by 13%.

Future-proof Hardware

Now you can confidently select from the most appropriate EVSE equipment that fits your budget and functionality needs. Furthermore, because AmpedUp's platform and controllers use open source, widely accepted communication protocols, you can rest assured it will work with new equipment you may need down the road.

Get an AmpedUp! Level 2 Charging Solution

Below are some of the Level 2 chargers that we support - each with their own unique benefits.
BTC Power 40amp, dual port ev charger
BTC Power Single Dual Port Chargers
BTC Power is a US-based EVSE provider that has been supplying reliable charging stations since 2011. These rugged AC Level 2 units support from 32A (7.2kW) to 70A (16.8 kW) output. They are best suited for heavy use, public areas. They feature a 7 inch display, RFID/NFC scanning, built-in cable management, Ethernet or cellular connectivity, and easy access for technicians.
UL Certification Logo
32A-70A
Dual or Single Port
Pedestal or Wall mount
Single or Three Phase
BTC Power, 50amp, wall mount, EV charger
BTC Power Single Port 50A Chargers
The eBox is BTC Powers latest line of single port 50A chargers. The elegant, small form factor, units are packed with features and easy to install and maintain. The chargers come in Pro and Touch variants. The Pro model has WiFi, Ethernet, and RFID/NFC scanning capabilities while the Touch provides an interactive touch screen in addition to the Pro features. They support local, wired load balancing and other advanced features such as Plug-&-Charge (ISO 15118).
UL Certification LogoFCC certified ratiing
16A-50A
Single Port
Pedestal or Wall mount
Single or Three Phase
ClipperCreek EV charging station solutions
ClipperCreek Single Port Chargers
ClipperCreek is a US-based company who manufactures their products in America. ClipperCreek sets the industry standard when it comes to reliability and value. These chargers are available from 32A-64A and come with a 3 year warranty. Coupled with an AmpedUp! Networks EVCC, the ClipperCreek chargers provide full-featured smarts at an economical price. See the Installation Guide to get a detailed understanding of how these chargers work with the EVCC.
UL Certification Logo
32A-64A
Single Port
Pedestal or Wall mount
Single Phase
Inteset evSmartPlug ev charging solution
Inteset Technologies Dual Port EVCC evSmartPlug with AmpedUp! Inside
Inteset Technologies, an online seller of electric vehicle chargers and accessories, has created a unique offering that showcases the AmpedUp! Inside and EVCC technology. The EVCC evSmartPlug™ is designed for property owners looking to reduce upfront infrastructure costs and long term maintenance expenses while still offering fee-based EV charging. The evSmartPlug™ provides a dual port 40amp ev charging solution for EV drivers that use their own portable chargers.
pending safety certification
16-40A
Dual Port
Pedestal or Wall mount configurations
Single Phase

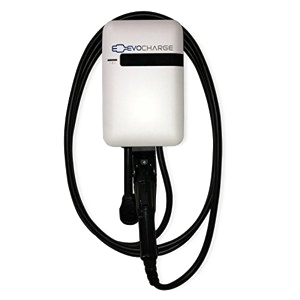

Phillips and Temro 32amp EVOCharge EV charging station
Phillips & Temro Single Port Chargers
Phillips & Temro is a 100 year old engineering company. Their EVOCHARGE EVSEi 32A chargers have a compact modern design perfectly suited for MUDs. These units support WiFi, Ethernet, and RFID/NFC scanning ability and are a breeze to install and configure.
UL Certification Logo
16A-32A
Single Port
Pedestal or Wall mount
Single Phase
